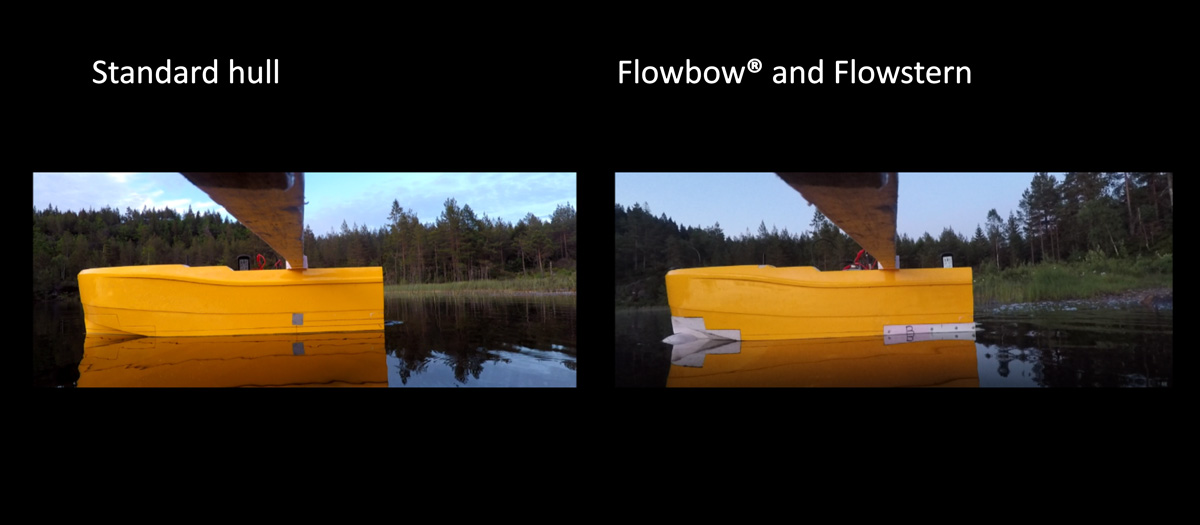

Model of 11 meter semidisplacement fishing vessel
5.8 knots Fn=0.29
7.3 knots Fn=0.36
8.7 knots Fn=0.43
9.3 knots Fn=0.46
10.2 knots Fn=0.50
10.8 knots Fn=0.53
11.1 knots Fn=0.55
Powerconsumtion vs. velocity
Reduction in resistance for 11m vessel with Flowbow® and Flowstern
At 7.5 knots, resistancereduction approx. 35% At 9.0 knots, resistancereduction approx. 40% At 10.0 knots, resistancereduction approx. 45%
Reduction in fuel/energy consumption per distance versus velocity.
The graphs show considerable reduction in fuel/energy consumption per distance, compared to traditional hull design, as velocity increases. This also allow vessels to be operated at considerable higher cruising speed with good fuel economy.
Model test of semidisplacement/ planing vessel, powerconsuption vs. velocity.
Data from model testing is to be up scaled from model to full-scale vessel, resulting in a greater percentage reduction of the resistance than shown in model testing.
